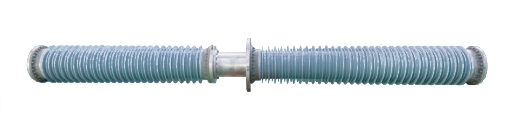

Product use：Dry-type condenser wall bushings are mainly used in power plants and power substations for conductor to pass through the wall or floor, and supporting conductive part to make it insulated to earth.
Product structure：It is mainly composed of conducting pole, RIP capacitor core, high temperature liquid silicone rubber composite external insulation, test tap, fittings, etc.
Advantages of bushings：
Ø Unique resin system and special buffer strips
Ø The most advanced production equipment of the world guarantee the better electrical properties, heat-resistance and mechanical properties of RIP bushings series.
Ø The lower weight and smaller volume make it easy for transportation, erection and maintenance.
Ø Oil-free and gas-free design is more environmentally friendly, no risk of explosion；
· 絕緣設計裕度大，采用進口皺紋紙浸漬樹脂作為主絕緣，以優(yōu)質的鋁箔作為電容屏，保證產品極低的局部放電水平和介質損耗水平；
Ø Excellent performance ensures long-term stable online operation.
Description of product type

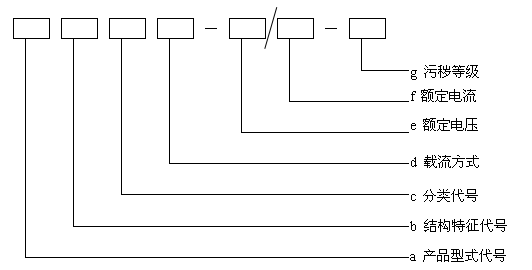

a Product type code
· BRFG Composite insulated RIP condenser transformer bushing
· BRCG Porcelain insulated RIP condenser transformer bushing
· BRQG Oil- SF6 RIP condenser transformer bushing
· BROG Oil- oil RIP condenser transformer bushing
· CRFG Composite insulated RIP condenser wall bushing
· CRCG Porcelain insulated RIP condenser wall bushing
· DRFG Composite insulated RIP condenser generator bushing
· GRFG Composite insulated RIP condenser GIS outlet line bushing
b Structural features code
L means it can be equipped with current transformers; no L means it can not be equipped with current transformers.
c Classification code
DC bushings are indicated with the letter Z; AC bushings are not expressed.
d Way of current carrying
1-直接載流；2-穿纜載流

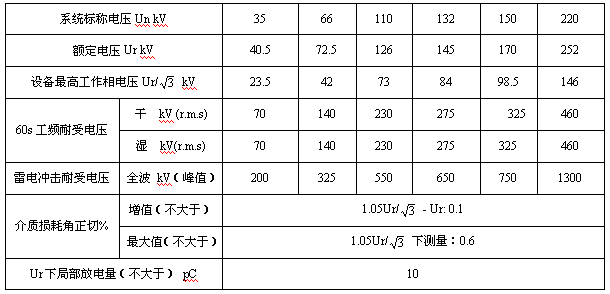

Electrical performance table of dry-type condenser wall bushings

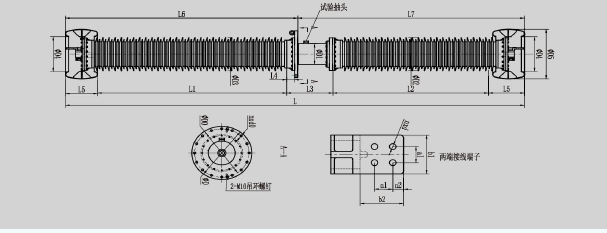

Schematic diagram of Dry-type condenser wall bushing

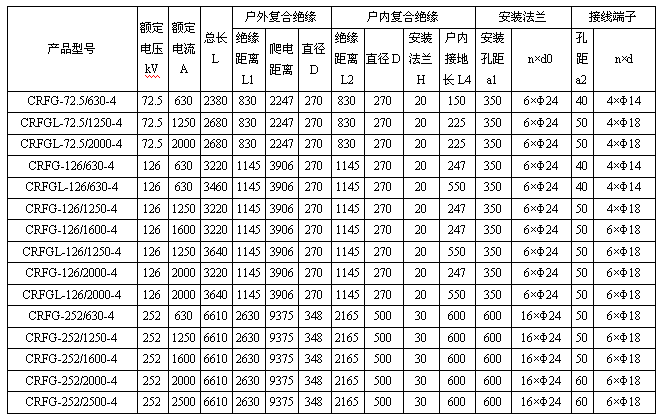

Main dimensions of dry-type condenser wall bushings
Unit：mm
