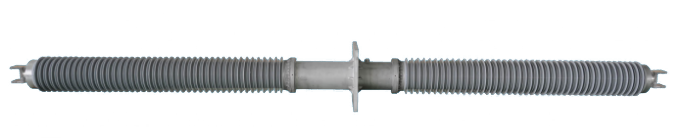

Product structure：It is mainly composed of conducting pole, RIP capacitor core, high temperature liquid silicone rubber composite external insulation, equalizing ball, test tap, fittings, etc.
Advantages of bushings：
Ø Unique resin system and special buffer strips
Ø The most advanced production equipment of the world guarantee the better electrical properties, heat-resistance and mechanical properties of RIP bushings series.
Ø The lower weight and smaller volume make it easy for transportation, erection and maintenance.
Ø Oil-free and gas-free design is more environmentally friendly, no risk of explosion；
Ø Excellent performance ensures long-term stable online operation.
Description of product type
a Product type code
· BRFG Composite insulated RIP condenser transformer bushing
· BRCG Porcelain insulated RIP condenser transformer bushing
· BRQG Oil- SF6 RIP condenser transformer bushing
· BROG Oil- oil RIP condenser transformer bushing
· CRFG Composite insulated RIP condenser wall bushing
· CRCG Porcelain insulated RIP condenser wall bushing
· DRFG Composite insulated RIP condenser generator bushing
· GRFG Composite insulated RIP condenser GIS outlet line bushing
b Structural features code
L means it can be equipped with current transformers; no L means it can not be equipped with current transformers.
c Classification code
DC bushings are indicated with the letter Z; AC bushings are not expressed.
d Way of current carrying
1-Direct type；2-Cable through type

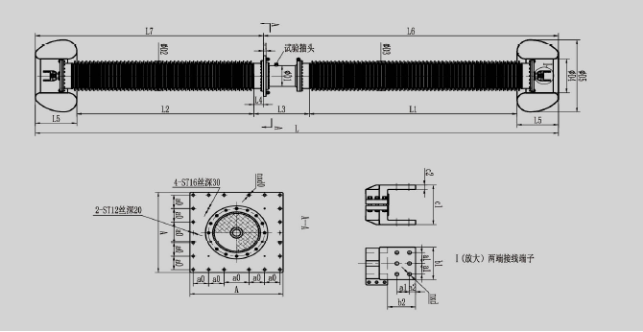

Schematic diagram of Dry-type condenser DC wall bushing
Main dimensions of dry-type condenser DC wall bushings
Unit：mm
|
Product type
|
Rated voltage
kV
|
Rated current
A
|
Total length
L
|
Composite insulator outdoor
|
Composite insulator indoor
|
Erection flange
|
Terminal
|
|
Insulation distance
L1
|
Creepage distance
|
Max. diameter
D3
|
Insulation distance
L2
|
Total length
L7
|
Max. diameter
D2
|
Length of grounded part
L4
|
Erection holes pitch D0
|
holes pitch
a2
|
n×d
|
|
CRFGZ-30/630-4
|
±30
|
630
|
2590
|
700
|
2248
|
230
|
600
|
1220
|
230
|
400
|
280
|
40
|
4×Φ14
|
|
CRFGZ-50/3150-4
|
±50
|
3150
|
3170
|
1150
|
3150
|
260
|
1000
|
1560
|
260
|
250
|
280
|
60
|
4×Φ18
|
|
CRFGZ-100/3150-4
|
±100
|
3150
|
3290
|
1400
|
4290
|
260
|
1000
|
1520
|
260
|
300
|
350
|
40
|
4×Φ14
|
|
CRFGZ-200/3600-4
|
±200
|
3600
|
8940
|
3400
|
13000
|
470
|
3200
|
3800
|
470
|
1050
|
470
|
60
|
6×Φ20
|
|
CRFGZ-400/5000-4
|
±400
|
5000
|
13200
|
6300
|
22000
|
660
|
4480
|
5720
|
660
|
1800
|
970
|
60
|
6×Φ20
|
|
CRFGZ-800/5000-4
|
±800
|
5000
|
21800
|
9800
|
43200
|
915
|
8350
|
9150
|
915
|
2600
|
1080
|
60
|
6×Φ20
|
